Fowler FUSION CMM RTP20 Probe Head
Fowler FUSION CMM RTP20 Probe Head, RTP20 - Imagen 2
Fowler FUSION CMM RTP20 Probe Head, RTP20 - Imagen 3

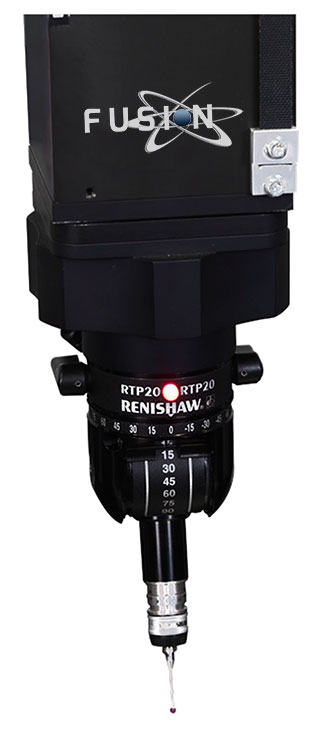

Fowler FUSION CMM RTP20 Probe Head, RTP20

• The RTP20 probe offers a really cost effective solution for customers that require automatic indexing on CNC machines

• Modeled on the MH20i body, the RTP20 uses the CNC motion of the CMM to position itself using a post mounted to the bed of the machine

• Like the MH20i it is able to index from 0° to 90° in the A axis and through 360° in the B axis, in 15° increments and uses a TP20 stylus module, which in turn accepts the M2 range of styli

• The RTP20 is also fully compatible with the MCR20 change rack to provide an option that provides both automatic stylus changing as well as automatic indexing

Solicita Cotización
Categorías: ,

Descripción

The RTP20 probe offers a really cost effective solution for customers that require automatic indexing on CNC machines. Modelled on the MH20i body, the RTP20 uses the CNC motion of the CMM to position itself using a post mounted to the bed of the machine. Like the MH20i it is able to index from 0° to 90° in the A axis and through 360° in the B axis, in 15° increments and uses a TP20 stylus module, which in turn accepts the M2 range of styli. The RTP20 is also fully compatible with the MCR20 change rack to provide an option that provides both automatic stylus changing as well as automatic indexing.
